Production Line Introduction:
The raw material is raw pig skin, which is washed and fried directly at 180 degrees for 5 to 6 minutes.The output is 3 to 1, it does not consume oil and still produces oil.
Scrape oil, cut, wash, dry, fry, de-oil, season, pack, etc. The temperature is 220 degrees, about 30-40 seconds, output ratio: 1: 1.

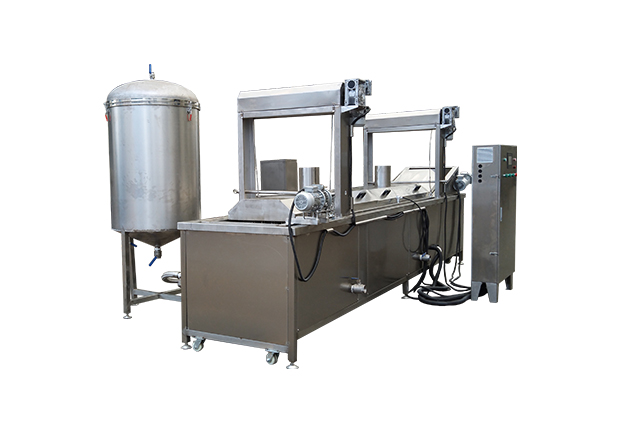

The professional deep-frying machine for fried pork rinds adopts a double-layer mesh belt conveying operation, which can press the pig rinds into the frying oil for frying, ensuring the uniformity of fried pork rinds. The Joyshine brand pork rind frying machine is also equipped with The oil draining and cooling production line can solve the problem of high oil content and speed up product packaging operations. The production efficiency is several times that of ordinary frying machines and requires less labor, which is in line with the company's requirements for low cost and high profits.
|
Model |
Power(electric heating) |
Reference capacity |
Dimensions(mm) |
Mesh belt width (mm) |
|
JSLY4000 |
120kw |
100-200kg/h |
4000*1200*2400 |
600-1000 |
|
JSLY5000 |
140kw |
150-300kg/h |
5000*1200*2400 |
600-1000 |
|
JSLY6000 |
180kw |
200-500kg/h |
6000*1200*2400 |
600-1000 |
|
JSLY8000 |
200kw |
300-800kg/h |
8000*1200*2400 |
600-1000 |
Heating method:Electricity .Gas or Electromagnetism.
Automatic temperature control ,range is 0-220°C,with PLC touch screen control.
Mesh conveying speed adjustable.
Can be equipped with oil filter machine and oil tank.
Equipped with mesh lifting system ,easy to clean.
Unique inner structure with proprietary technology ,energy saving ,quick heating.
With oil storage tank and oil circulating pump.
